Categories of NiMH Battery Chargers being shown in this Showroom:
Click on the"categories" immediately
below to move to the selected targets on this same page.
(Listing below in order of "output
watts, ascending")
Desktop,

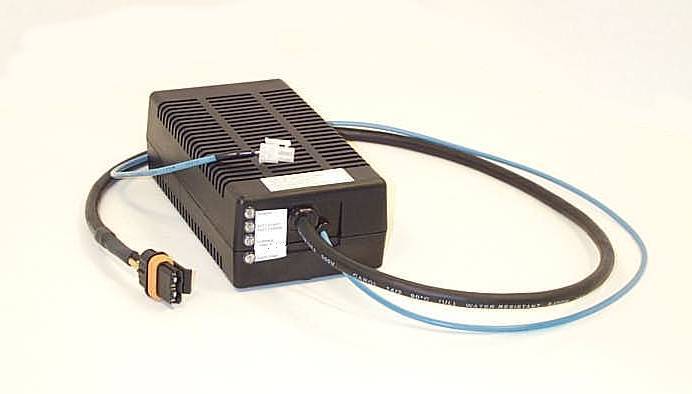

Pulse-Type NiMH Chargers, GY Case, 100 watt
Open-frame,
Pulse-Type NiMH Chargers, PE Case, 100 watt
Desktop,
Pulse-Type NiMH Chargers, TA Case, 170 watt
(More to come later)
 |
 |

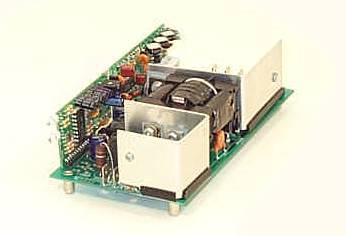

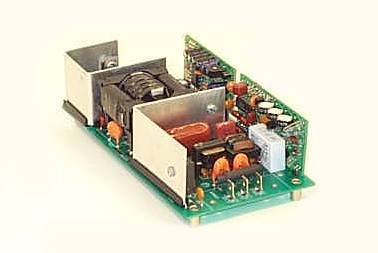

Pictures (below) of 100 watt, Open-frame, NiMH Battery Chargers, PE Case, Pulse Type Charge Algorithm
Charger models in PE Open-frame case with 4-Stage
Pulse Charge, Multiple Methods of Charge Termination with
0.25" Fastons for input and output connections on charger unit (Note:
An in-line fuse is needed in the customer's (+) output lead wire), and
with 0.14" Fastons for connecting wires needed to connect to an isolated
10K thermistor which senses the temperature of the battery system.
Size: 6.50" long x 3.30"
wide x 1.94" high.
Weight: 1.5 lbs. (approx.)
 |
 |
|
|
|
|

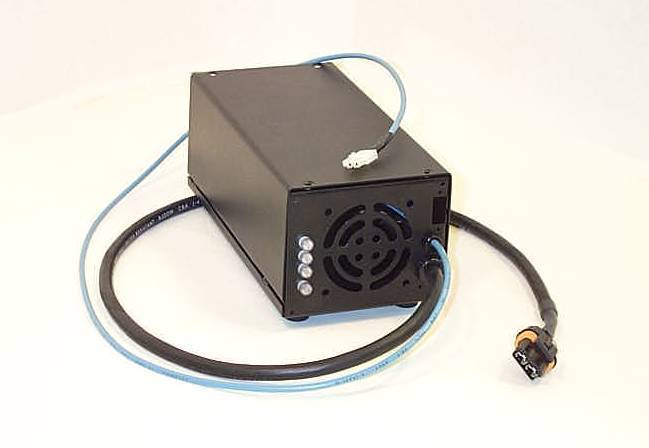

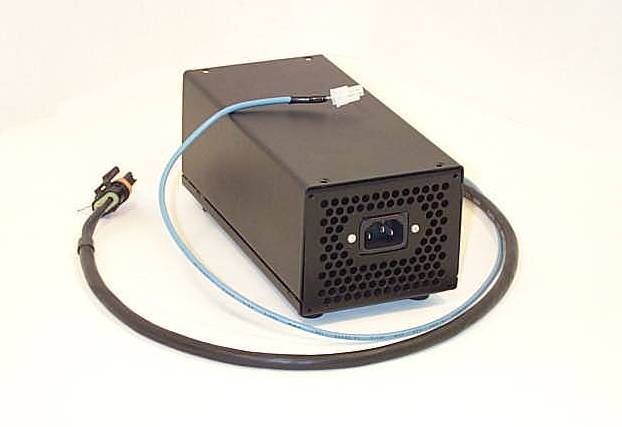

Pictures (below) of 170 watt, Desktop, NiMH Battery Chargers, TA Case, Pulse Type Charge Algorithm
Charger models in TA metal case, with internal
fan, with 4-Stage Pulse Charge, with Multiple Methods of Charge Termination
, and with IEC 320 input connector , with 2-conductor
power output cable with connector on end to connect to a separate mating
cable which connects to the respective (+) and (-) battery terminals [also
an in-line fuse is needed in the (+) output lead wire]; and with 2-conductor
thermistor cable with connector on end to connect to a separate mating
cable which will connect to an isolated 10K thermistor which senses the
temperature of the battery system.
Size: 7.87" long x 3.94"
wide x 3.15" high.
Weight: 3.25 lbs. (approx.)
 |
 |
|
|
|
|
