Categories of Lead-Acid Battery Chargers being shown in this Showroom:
Click on the"desired category"
immediately below to move to the selected targets on this same page.
(Listing below in order of "output
watts, ascending")
Desktop,
Switchmode-type, Lead-Acid Chargers, FR Case, 47 watt
Open-frame,
Switchmode-type, Lead-Acid Chargers, PD Case, 47 watt
Desktop,
Switchmode-type, Lead-Acid Chargers, GY Case, 100 watt
Open-frame,
Switchmode-type, Lead-Acid Chargers, PE Case, 100 watt
Desktop,
Switchmode-type, Lead-Acid Chargers, TA Case, 170 watt
Enclosed,
Switchmode-type, Lead-Acid Chargers, TA Case, 170 watt
Desktop,
Rain-Resistant, Switchmode-type, Lead-Acid Chargers, VR Case, 440
watt
Enclosed,
Rain-Resistant, Switchmode-type, Lead-Acid Chargers, VR Case, 440
watt
Desktop,
Switchmode-type, Lead-Acid Chargers, VR Case, 1128 watt
Enclosed,
Switchmode-type, Lead-Acid Chargers, VR Case, 1128 watt

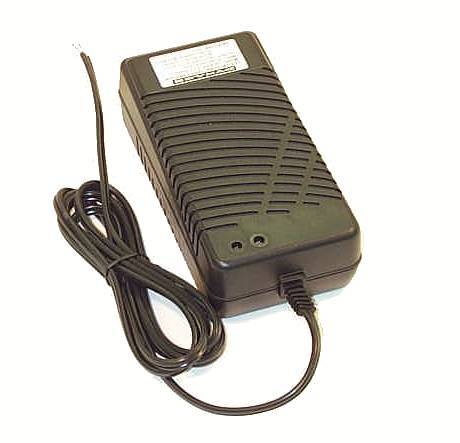

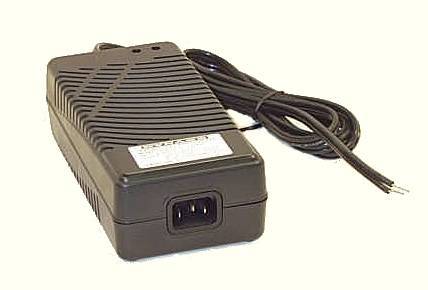

Charger models in FR case (plastic) with, by model
selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal
input, with IEC 320 input connector , with 2-conductor
power output cable with "stripped ends", and with optional temperature
compensation of final voltage for the battery ambient temperature.
Size: 6.81" long x 3.37"
wide x 2.03" high. Weight: 1.20 lbs.(approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|

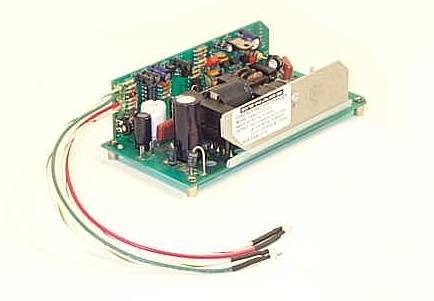

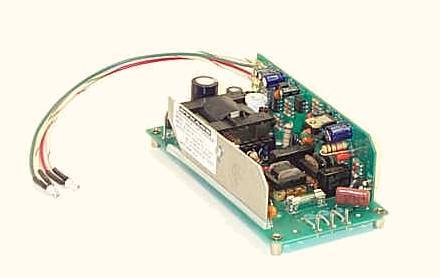

Charger models in PD case (open-frame) with, by model
selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal
input, with 0.11" Fastons for input and output
connections on charger unit, and with 0.11" Fastons for connecting wires
needed to connect to a diode for optional temperature compensation of final
voltage for the battery ambient temperature.
Size: 6.20" long x 2.96"
wide x 1.94" high. Weight: 1.0 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|
Charger models in GY case (plastic) with, by model
selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal
input, and with IEC 320 input connector , with 2-conductor
power output cable with connector on end to connect to a separate mating
cable (purchased separately) which has "stripped ends" to connect (by customer)
to applicable terminations for the respective (+) and (-) battery posts,
and with 2-conductor cable with connector on end to connect to a separate
mating cable (purchased separately) which, on its end, has a isolated diode
to be used as "battery ambient" temperature sensor.
Size: 7.03" long x 3.75"
wide x 2.28" high. Weight: 1.75 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|
Charger models in PE case (open-frame) with, by model
selection, either "Float-Charge" or "3-Step-Charge" algorithm, with universal
input, with 0.25" Fastons for input and output
connections on charger unit, and with 0.14" Fastons for connecting wires
which, on their end, has a isolated diode to be used as "battery ambient"
temperature sensor.
Size: 6.50" long x 3.30"
wide x 1.94" high. Weight: 1.5 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|

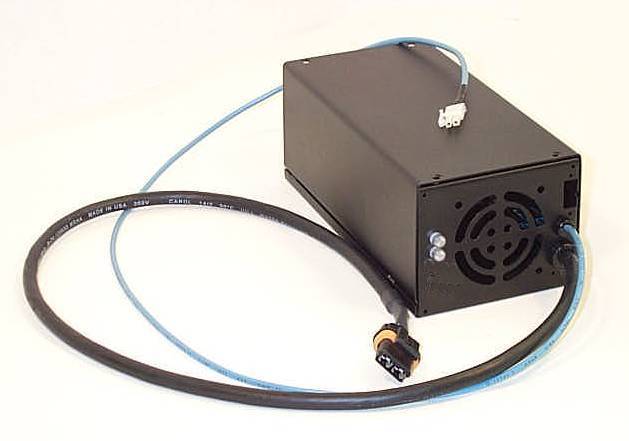

Charger models in TA case (metal, with desktop feet),
with internal fan, with, by model selection, either "Float-Charge"
or "3-Step-Charge" algorithm, with universal input, and with
IEC 320 input connector , with 2-conductor power output cable with connector
on end to connect to a separate mating cable (purchased separately) which
has "stripped ends" to connect (by customer) to applicable terminations
for the respective (+) and (-) battery posts, and with 2-conductor cable
with connector on end to connect to a separate mating cable (purchased
separately) which, on its end, has a isolated diode to be used as "battery
ambient" temperature sensor.
Size: 7.87" long x 3.94"
wide x 3.15" high. Weight: 3.25 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|

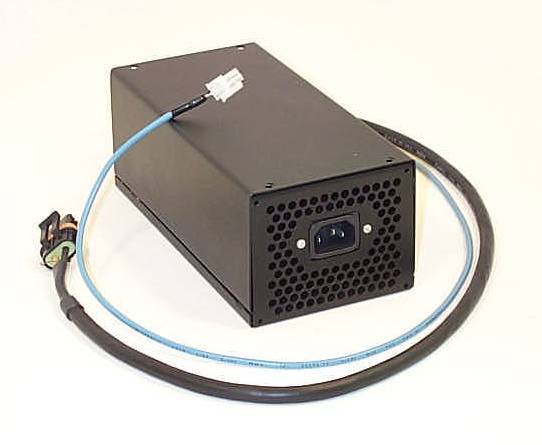

Charger models in TA metal case (for panel or bracket
mounting), with internal fan, with, by model selection, either "Float-Charge"
or "3-Step-Charge" algorithm, with universal input, and with
IEC 320 input connector , with 2-conductor power output cable with connector
on end to connect to a separate mating cable (purchased separately) which
has "stripped ends" to connect (by customer) to applicable terminations
for the respective (+) and (-) battery posts, and with 2-conductor cable
with connector on end to connect to a separate mating cable (purchased
separately) which, on its end, has a isolated diode to be used as
"battery ambient" temperature sensor.
Size: 7.87" long x 3.94"
wide x 3.15" high. Weight: 3.25 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|

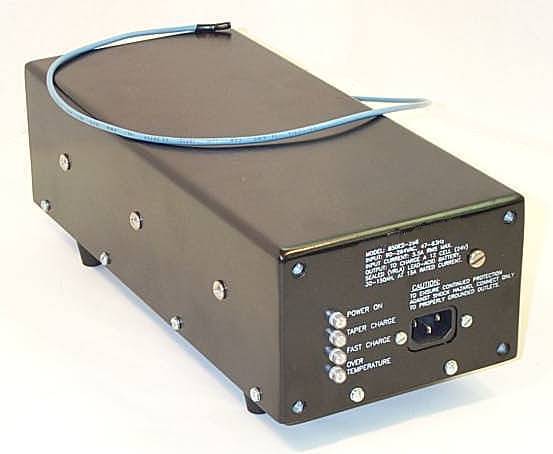

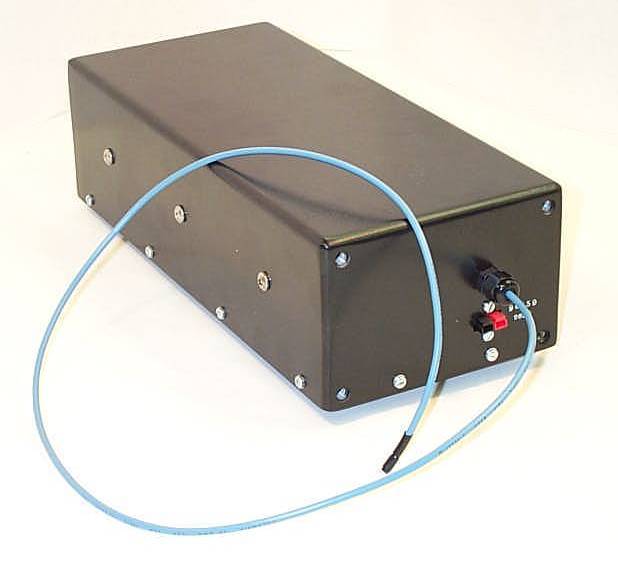

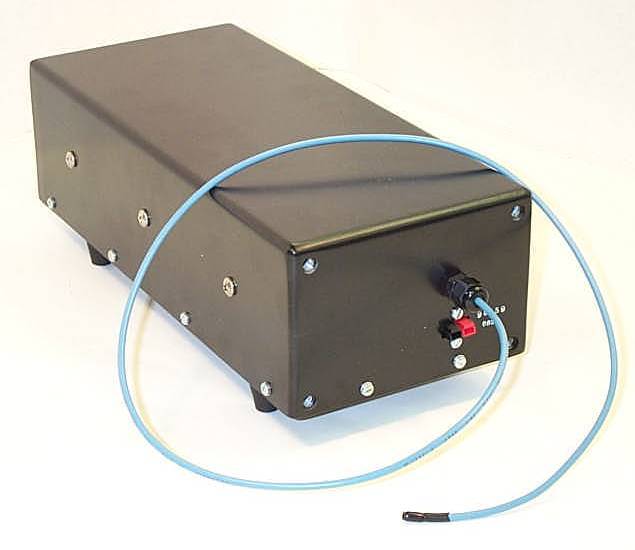

Charger models in rain-resistant, VR metal case (for
panel or bracket mounting), with internal fan, with 3-Step-Charge
algorithm, with universal input, with IEC 320 input
connector , with output connector to connect to a separate mating cable
(purchased separately) which has "ends" to connect (by customer) to applicable
terminations for the respective (+) and (-) battery posts, and with 2-conductor
cable with a isolated diode to be used as "battery ambient" temperature
sensor.
Size: 13.00" long x 5.75"
wide x 3.75" high. Weight: 6.9 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|

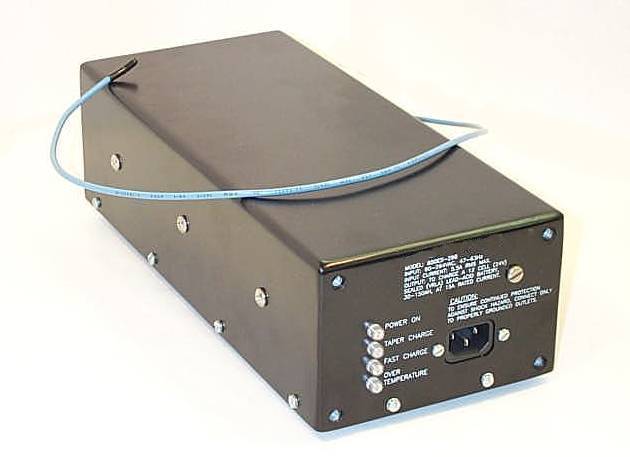

Charger models in rain-resistant, VR metal case (for
panel or bracket mounting), with internal fan, with, by model selection,
either "Float-Charge" or "3-Step-Charge" algorithm, with universal input,
and with IEC 320 input connector , with 2-conductor
power output cable with connector on end to connect to a separate mating
cable (purchased separately) which has "stripped ends" to connect (by customer)
to applicable terminations for the respective (+) and (-) battery posts,
and with 2-conductor cable with connector on end to connect to a separate
mating cable (purchased separately) which, on its end, has a isolated
diode to be used as "battery ambient" temperature sensor.
Size: 13.00" long x 5.75"
wide x 3.75" high. Weight: 6.9 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
|
|
|
|

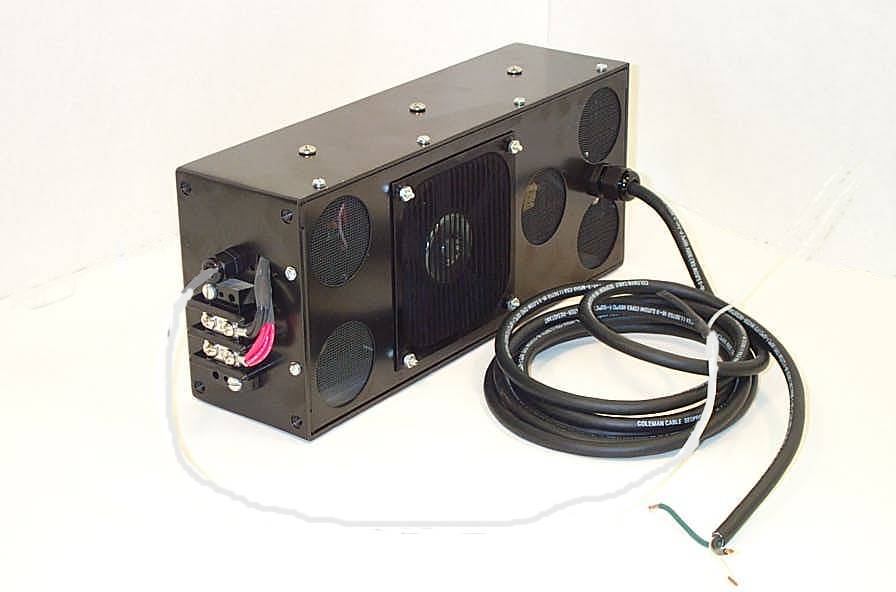

Charger models in rain-resistant, VR metal case, desktop,
with internal fan on bottom, with 3-Step-Charge algorithm, with 120
vac input, with 6 ft input cord with 3 prong North
American plug, with 2-point barrier block to connect to a separate cable
(customer furnished) which has "ends" to connect (by customer) to applicable
terminations for the respective (+) and (-) battery posts, and with 2-conductor
cable with a isolated diode to be used as "battery ambient" temperature
sensor.
Size: 13.00" long x 5.75"
wide x 4.25" high. Weight: 7.5 lbs. (approx.)
Back to top,
"Category" selections
 |
 |
 |
|
(feet not shown) |
(feet not shown) |
(feet not shown) |

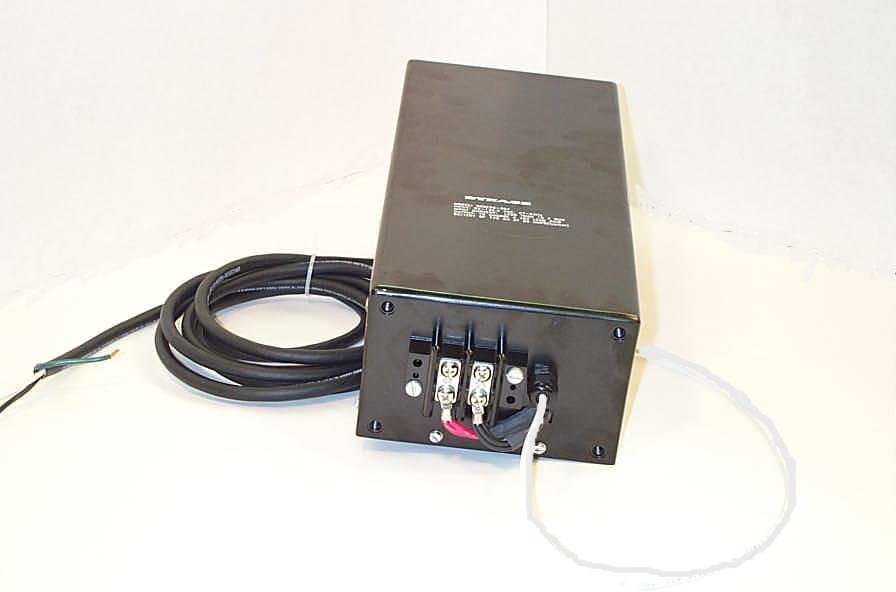

Charger models in rain-resistant, VR metal case (for
panel or bracket mounting), with internal fan, with, by model selection,
either "Float-Charge" or "3-Step-Charge" algorithm, with 120 vac input,
with
6 ft input cord with 3 prong North American plug, with 2-point barrier
block to connect to a separate cable (customer furnished) which has "ends"
to connect (by customer) to applicable terminations for the respective
(+) and (-) battery posts, and with 2-conductor cable with connector on
end to connect to a separate mating cable (purchased separately)
which, on its end, has a isolated diode to be used as "battery ambient"
temperature sensor.
Size: 13.00" long x 5.75"
wide x 4.25" high. Weight: 7.5 lbs. (approx.)
