| Showroom
for High Voltage AC Power Supplies
(This page is still under construction)
Categories
of HV AC Power Supplies being shown in this Showroom:
Click on the"categories" immediately
below to move to the selected targets on this same page.
High
Voltage AC Power Supply for Corona Device
High
Voltage AC Power Supplies for Neon Tubes
(in development)
High
Voltage AC Power Supplies for Ozone Generators
(in development)
Pictures
(below) of Model 860-308 HV AC Power Supply Switchmode-Regulated)
for Corona Device
The Model 860-308 (below left and below right)
is designed to be used in conjunction with a corona device such as might
be used in engine pollution control. The Model 860-308 input rating
is nominally 12 to 13.8 vdc from an auto battery (or equal) and the input
connections are "wires to pc board terminals". The Driver Assy for
driving the transformer, Model 860-307 (below middle) is part of Model
860-308.
The output voltage rating of the 860-308 is up to 22
Kvac (peak to peak) with a current rating of up to 4.7 mA, with adjustments
available to achieve the desired output current. The frequency range
is 20 KHz to 50 KHz and three (3) adjustments are provided to adjust the
frequency to achieve the desired output current. The minus (-) input
and the minus (-) output terminals are common. The output connection
is a "pigtail high voltage wire".
Size of the Model 860-308: Rectangular, 10" long
x 3.1" wide x 3.1" high.
|
|
|
|

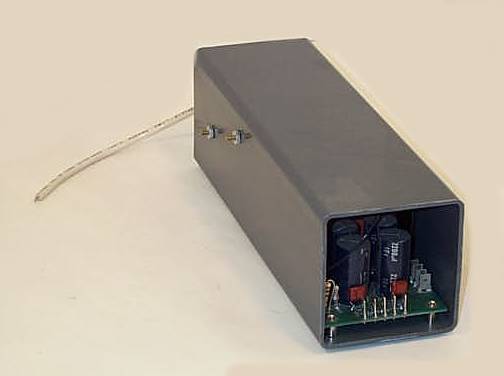

Model 860-308 (input end)
|

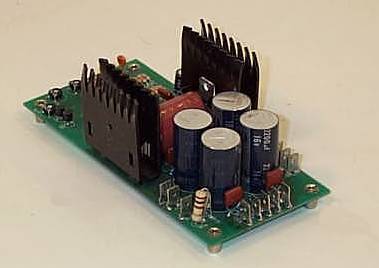

Model 860-307 (Driver Assy only)
|

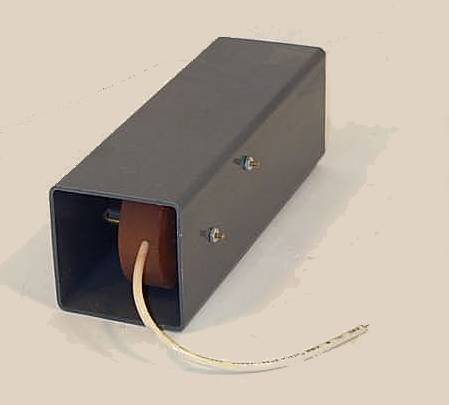

Model 860-308 (output end)
|
Pictures
(below) of Several Models of HV AC Power Supplies (Switchmode-Regulated)
for Neon Tubes
(in development)
One picture (below left) is Model DY9060CP-120
which is for 120 vac input and provides an "output equivalent to a 9000
volt and a 60 mA rating of a France transformer for light intensity".
Size is 12.92" long x 5.51" wide x 3.39" high.
Another picture (below middle) is Model DY9030CP-120
which is for 120 vac input and provides an "output equivalent to a 9000
volt and a 30 mA rating of a France transformer for light intensity".
Size is 12.92" long x 5.51" wide x 3.39" high.
|
(picture to come)
|
(picture to come)
|
(later)
|
|
Model DY9060CP-120
|
Model DY9030CP-120
|
Model (later)
|
Pictures
(below) of Several Models of HV AC Power Supplies (Switchmode-Regulated)
for Ozone Generators
(in development)
One picture (below left) is Model 850EHS-(later)
which is for 117 vac input (+ or - 15 v) and provides an output voltage
of 6000 vac, rms, at an output load current of 50 mA.
Size is 12.92" long x 5.51" wide x 3.39" high.
Another picture (below middle) is Model 850EHS-(later)
which is for 117 vac input (+ or - 15 v) and provides an output voltage
of 6000 vac, rms, at an output load current of 25 mA.
Size is 12.92" long x 5.51" wide x 3.39" high.
|
(picture to come)
|
(picture to come)
|
(later)
|
|
Model 850EHS-xxx
|
Model 850EHS-xxx
|
Model (later)
|
|
